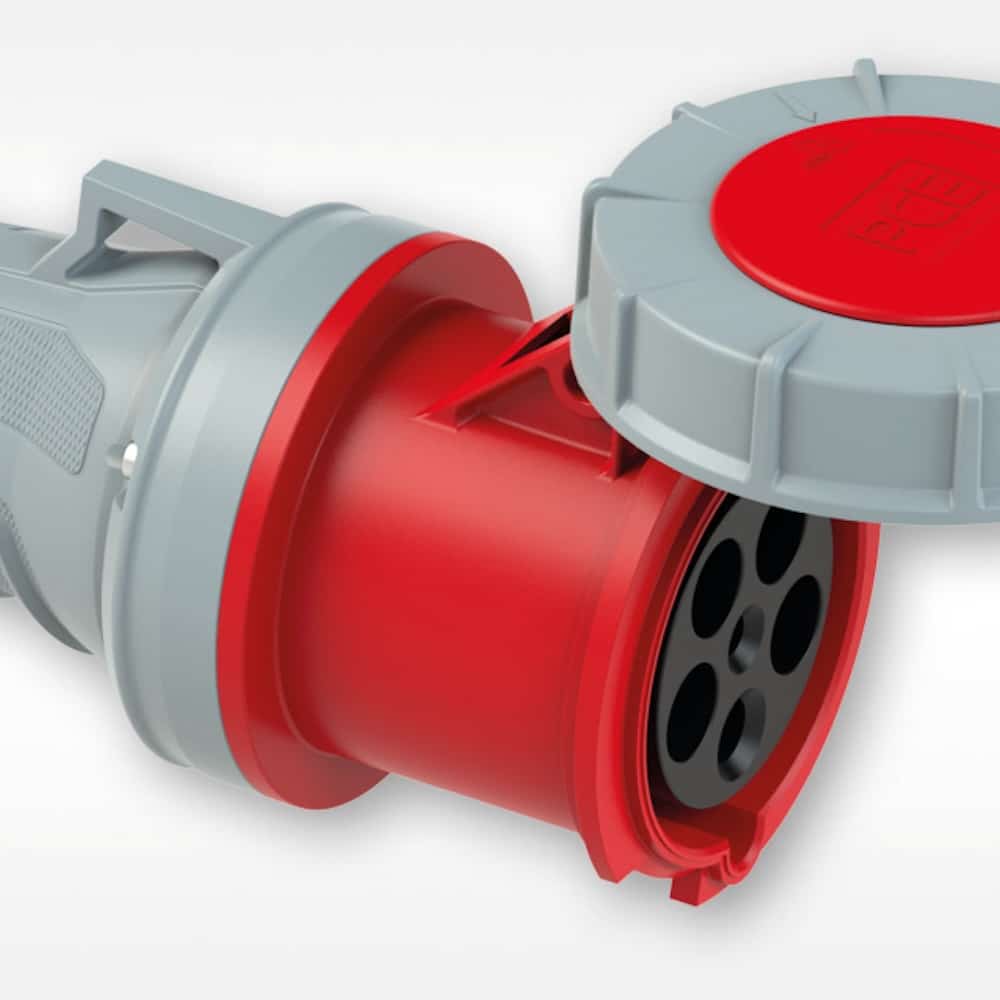

CEE-connector 63A 5p 6h IP67 pilot contact POWER TWIST 2355-6

SKU: 2355-6

EAN / GTIN: 9003399197833

£39.75£47.70

In stock

  • CEE-connector 63A 5p 6h IP67 POWER TWIST
  • housing material: PA6
  • rated current: 63A
  • number of poles: 5 (3P+N+PE)
  • clock-position: 6h
  • rated voltage/frequency: 200/346V~ - 240/415V~ /
  • 50+60Hz
  • contacts: brass, with lamellar spring (CuBe)
  • connection technology: frame terminals with
  • screws
  • IP protection class: IP66/IP67
  • Extra: pilot contact with screw terminal (rated
  • current 2A)

Free Shipping Over £100 ex VAT (UK Mainland) except when a single item weighs over 30kg.

The following is our typical policy and we may deviate from this in certain situations.

In stock items (under 30kg) are typically delivery next day if ordered before 12pm on a 1-2 day service at a cost of £5.50

Larger item orders (over 30kg) are dispatched within 48 hours using a pallet service at a cost of £70.

We also offer Local Collection as an option. Collection will need to be pre-arranged from our warehouse facility. If you place an order using this option, please email us to arrange a time to collect.

For any items marked as Out Of Stock, please contact us for an estimated delivery date. We may be awaiting parts and may be able to use alternatives or they may be scheduled for manufacturing which can be brought forward.

For more information, please view our shipping page

Additional Information

Weight 0.850 kg
Dimensions 26.9 × 11.4 × 11.4 cm
Brand

PCE

Connector Colour

Red

Input Connection

63A

Number of Phases

Three Phase
