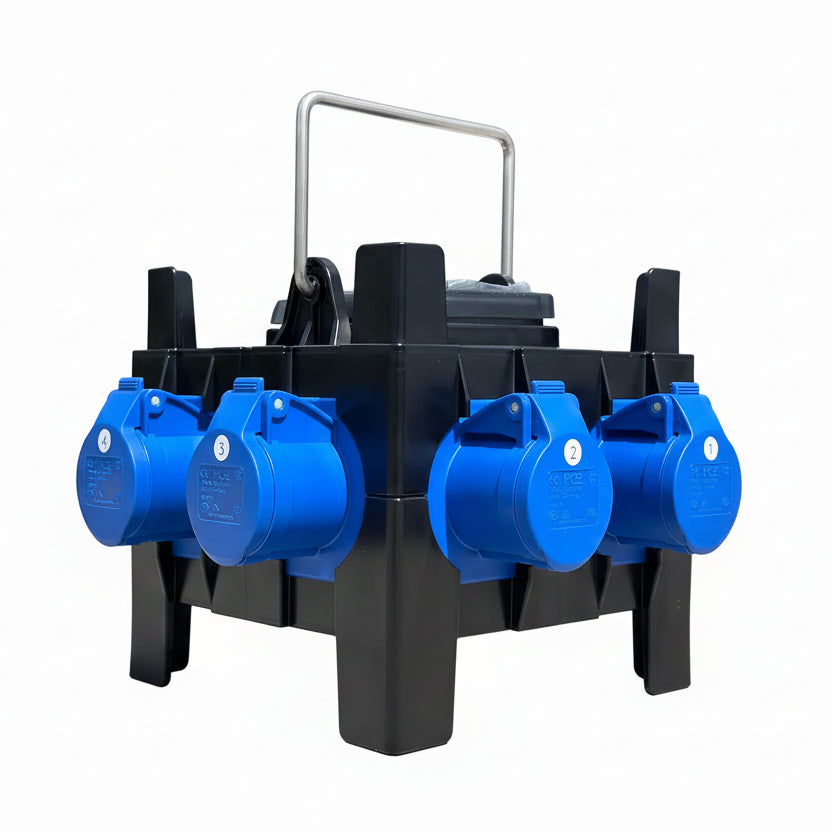

PCE IMST 32A Three Phase Distribution Box - Professional Quality Small Scale Power Distribution Box designed for the Event Industry.
Manufactured by the industry leaders PCE, the IMST range offers a cost effective solution to most applications. Some of the features include:
- Manufactured from shock resistant thermoplastic.
- Rated to IP44.
- Stackable for easy transport and storage
- Ergonomically designed handle.
- For indoor and outdoor use.
Uses
With a 32A Three Phase input and an unprotected 32A Three Phase output, this PCE IMST 32A distribution box is the ideal distro for small to medium sized set ups. A number of these can be connected together using our
32A Three Phase Cable. This is perfect when you have a long run of low power traders that can run off a single 32A Three Phase supply. Rather than numerous runs of 16A or 32A cable, a single run is neater and quicker. This unique combination allows for the full potential supply to be distributed through 2 of 32A sockets and 2 of 16A sockets or 1 of 32A socket and 4 of 16A sockets. For example, a caterer with a high draw fryer who also needs power for lighting, card machine and a tea urn. These are great when you need small distribution or as a smaller distro fed from a larger box, like our
63A 3 Phase Distribution Board or our
125A 3 Phase Distribution Board. All outputs have individual RCBOs, so the upstream RCD can be a fixed 100mA or variable.
Design
PCE are an industry leader in temporary power connectors and distribution components. Their IMST design is light weight, rugged, budget friendly and stackable. The outputs surround the box and the window faces upwards. This position enables the user to easily see the status of the RCBOs and to reset them as required.,
