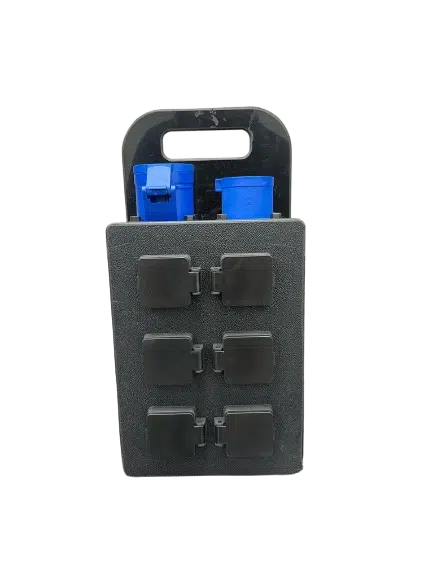

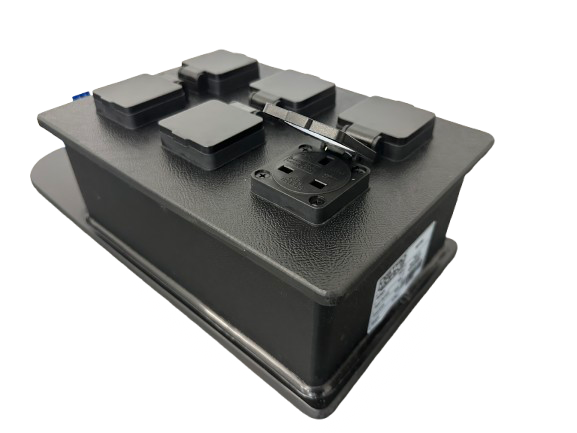

16Amp Single Phase 6 x 13Amp Distribution Board

Our 16A to 6 × 13A power distribution board is built for fast, tidy power where you need lots of low‑power outlets from a single 16A supply, without the fragility of consumer multi‑plugs.

It’s ideal for:

• temporary workstations (laptops, chargers, small screens)
• exhibition stands and pop‑up retail
• offices, classrooms and training rooms
• workshops and test benches
• events and site cabins

The loop‑through 16A outlet makes it simple to add additional units from the same supply when you need more outlets, keeping cabling cleaner and setups quicker.

Why there’s no RCBO in this unit

A common question is “Why doesn’t this have an RCBO built in?”

Under BS 7909 and BS 7671, 16A single‑phase supplies are typically provided with 30mA RCD protection upstream. Adding another 30mA RCD/RCBO inside this distro would place two 30mA RCD devices in series, which is generally redundant and can increase the chance of nuisance tripping.

Design and build

• Impact‑resistant polypropylene housing for hardwearing use and good chemical/corrosion resistance
• Ergonomic handle design: easy to carry, and the shape allows users to carry up to four units using two hands
• Lightweight with a compact footprint for storage and transport
• Suitable for floor mounting or suspending (application dependent)
• Green LED power indicator shows supply present at a glance

IP rating note

The 13A sockets have covers that bring the outlets to IP44 when closed (not in use). Once plugs are inserted, the 13A outlets are no longer IP44.

Key specs

• Input: 16A 230V single phase
• Loop‑through: 16A single phase
• Outputs: 6 × 13A UK sockets
• Indicator: Green power LED
• Enclosure: Impact‑resistant polypropylene
• Ingress protection: IP44 when 13A covers closed (see note above
• Size: 402 X 200 × 125 mm (H X W X D )

• Weight: 2.3 kg
