PCE IMST Power Distribution Unit, 32Amp Three Phase to 2 x 16Amp Three Phase RCBO

This IMST 32A three phase distribution board provides two independently protected 16A three phase outputs from a single 32A supply, offering a safe and practical solution for distributing power on site. It is ideal for temporary event setups, site power, plant equipment, production environments, and workshop use.

Protection

Instead of feeding both outputs through a single protective device, this unit provides two separate 16A three phase outlets, each protected by its own 16A 30mA four pole Type A RCBO (C curve). This means if one connected load develops a fault or trips, only that circuit is affected, keeping the second output live and operational. It also helps prevent cumulative leakage issues that can occur when multiple loads are placed behind a single shared RCD.

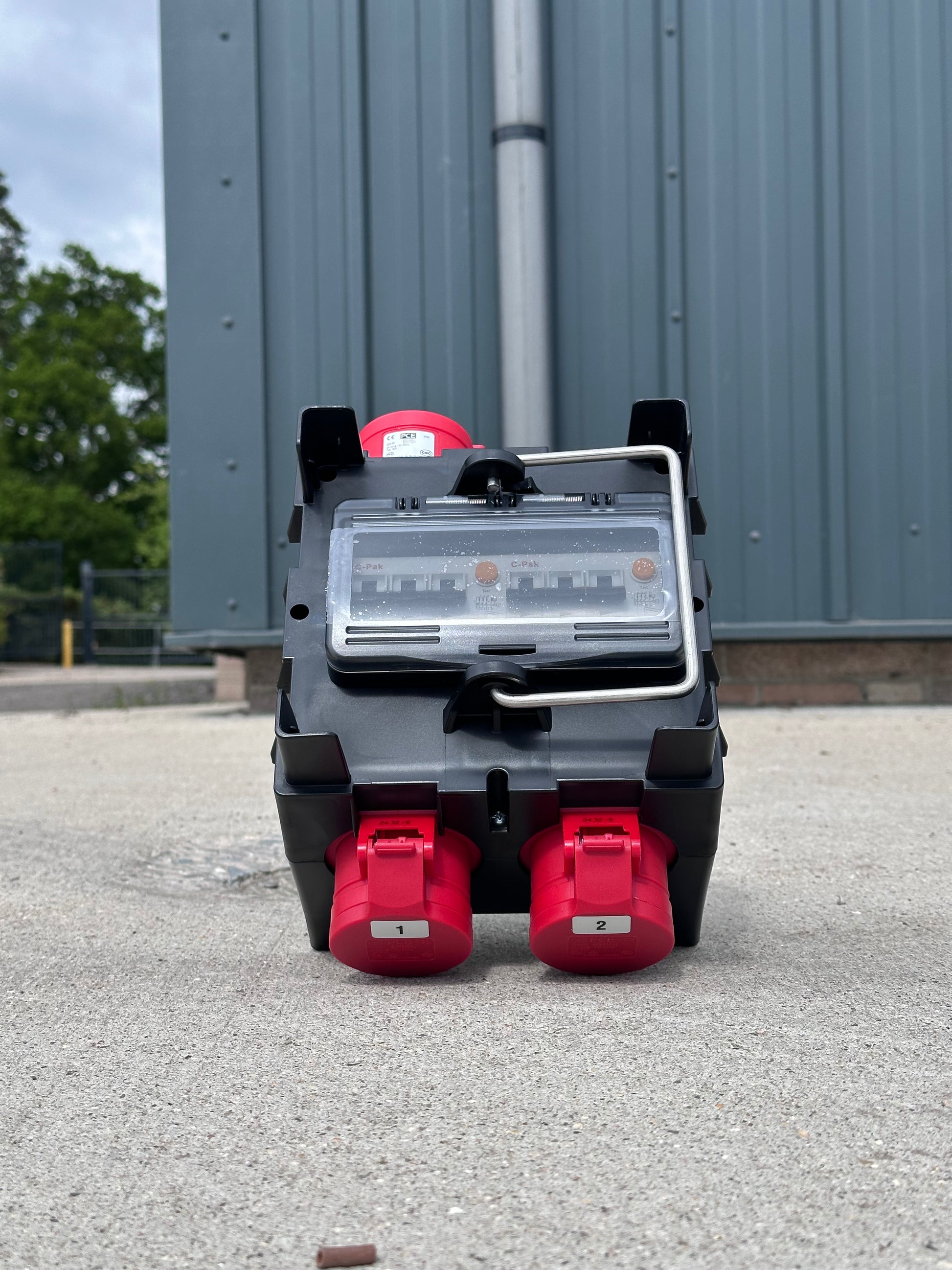

Rugged enclosure

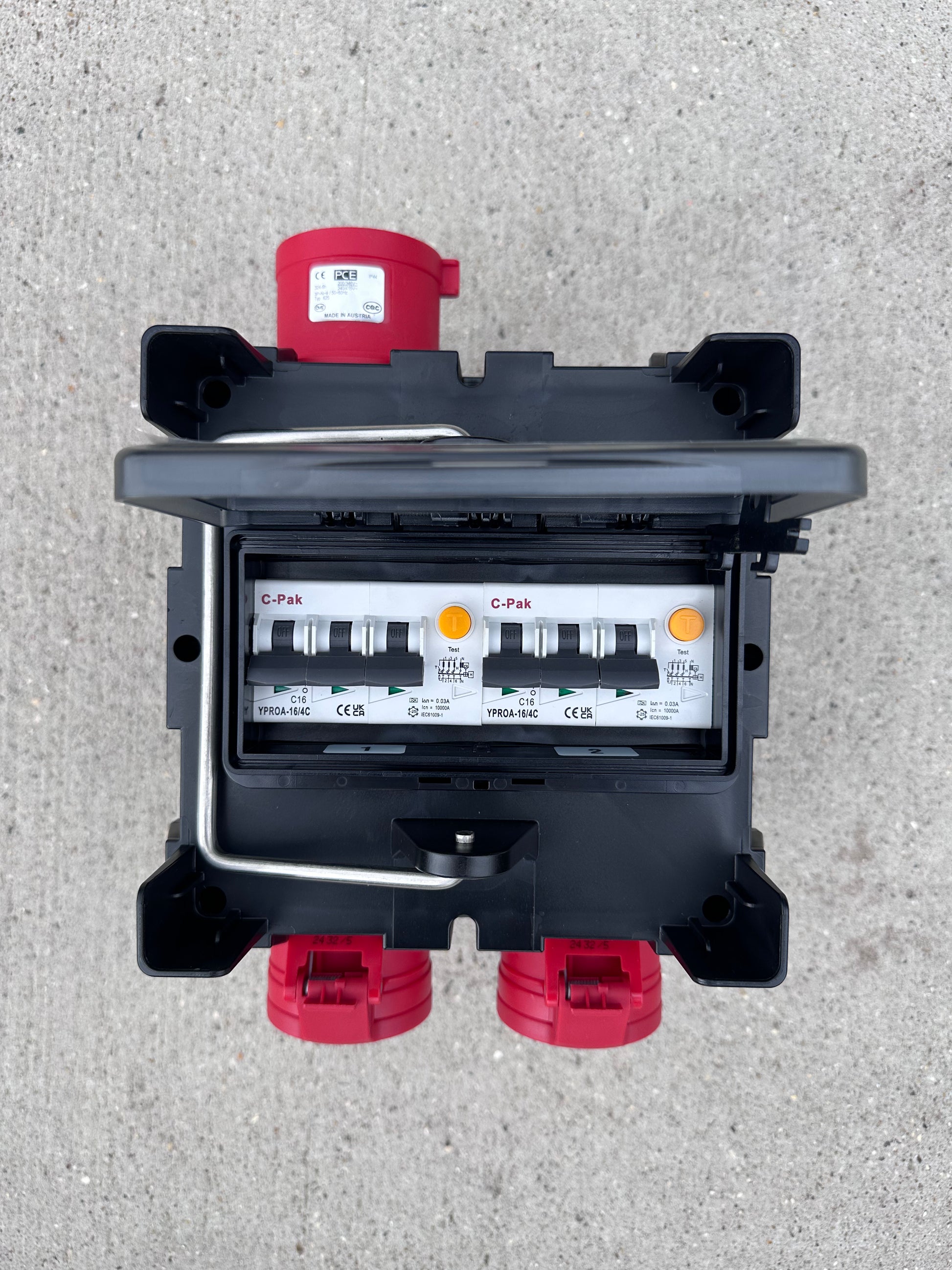

The enclosure is shock resistant polyamide, designed to be tough, lightweight and genuinely portable. It features a folding steel carry handle and a stackable design for easy transport and storage. The protective devices sit behind a clear window, allowing quick visual checks on site. Rated IP44, it is suitable for real world temporary use where conditions are not always perfect

Key specs

• Input: 32A, 240 to 415V, 5 pin (3P + N + E) IP44 inlet
• Outputs: 2 × 16A, 240 to 415V, 5 pin (3P + N + E) IP44 sockets
• Protection: each output protected by a 16A 30mA four pole Type A RCBO (C curve)
• IP rating: IP44
• Weight: 2.6kg
