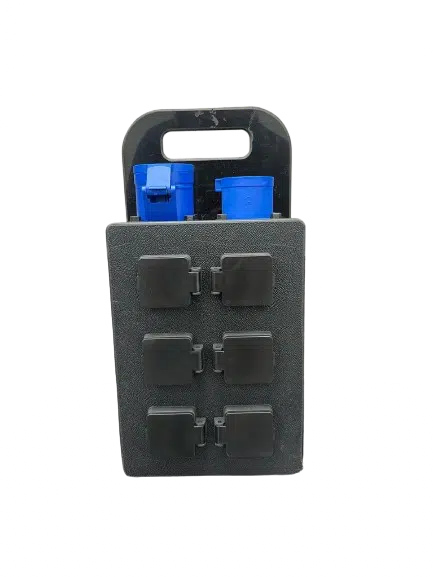

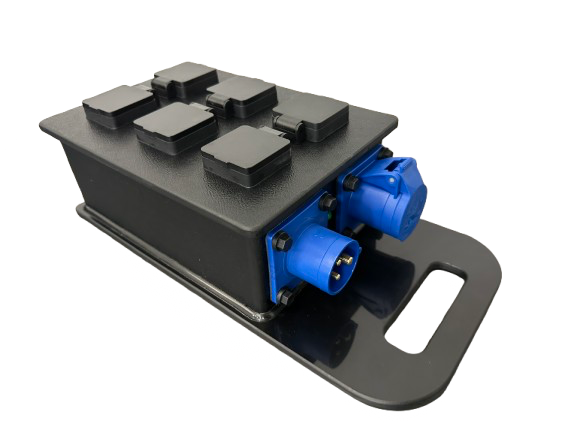

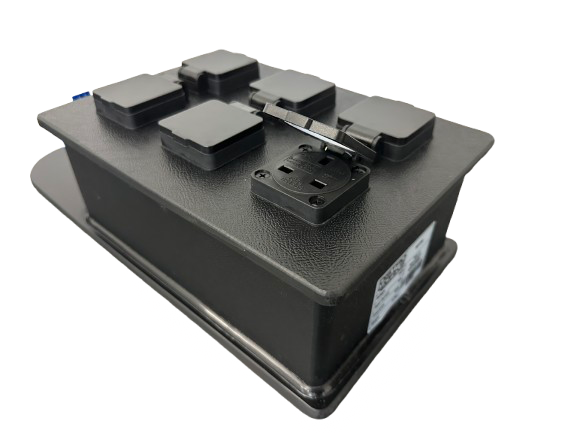

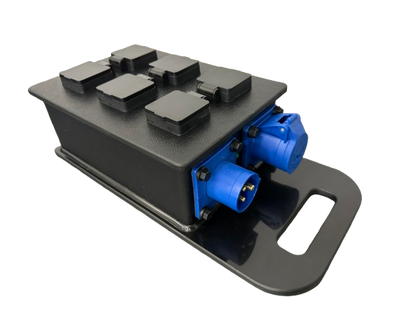

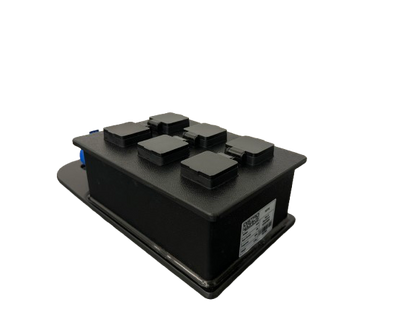

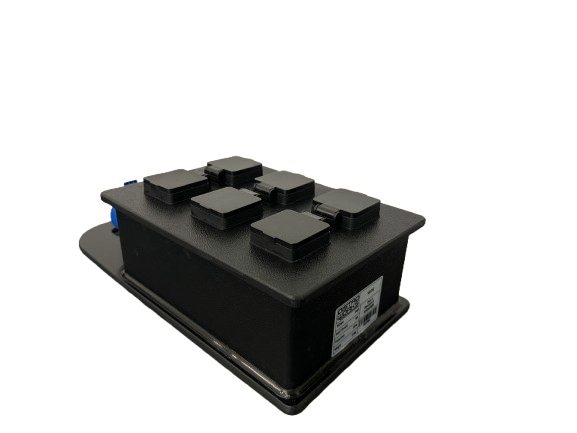

32Amp Single Phase 6x 13Amp Distribution Board

Professional quality 32A to 6 x 13A loop through distribution board, built for hard use.

This is the higher capacity version of our popular 13A outlet board. It is designed for situations where you want more headroom on the incoming supply, but still need multiple standard 13A plug in points for low to medium power equipment.

The 32A input and 32A loop through makes it easy to run multiple units from a single supply when you need more outlets. A green LED power indicator gives a clear visual check that the supply is live.

Rugged enclosure and easy handling

The enclosure is made from impact resistant polypropylene chosen for hard wearing use, with strong chemical and corrosion resistance. The compact footprint stacks neatly for storage and transport, and the handle design makes day to day handling quick and safe.

Outdoor practicality

The 13A sockets have covers which give IP44 protection when closed. Once a plug is inserted the socket cover cannot close, so that outlet is no longer IP44.

About RCD protection

In many temporary power setups the supply feeding this unit is already protected by a 30mA RCD. Adding another 30mA device inside the board would create two RCDs in line, which is usually redundant and can increase nuisance tripping. For that reason this board is designed to work with correctly protected supplies.

Key features

• 32A single phase input with 32A loop through for daisy chaining
• 6 x 13A UK socket outlets with spring covers
• Green LED power indicator
• Impact resistant polypropylene enclosure
• Compact footprint, easy to store and transport
• Size: 402 X 200 × 125 mm (H X W X D )

• Weight: 2.5 kg
