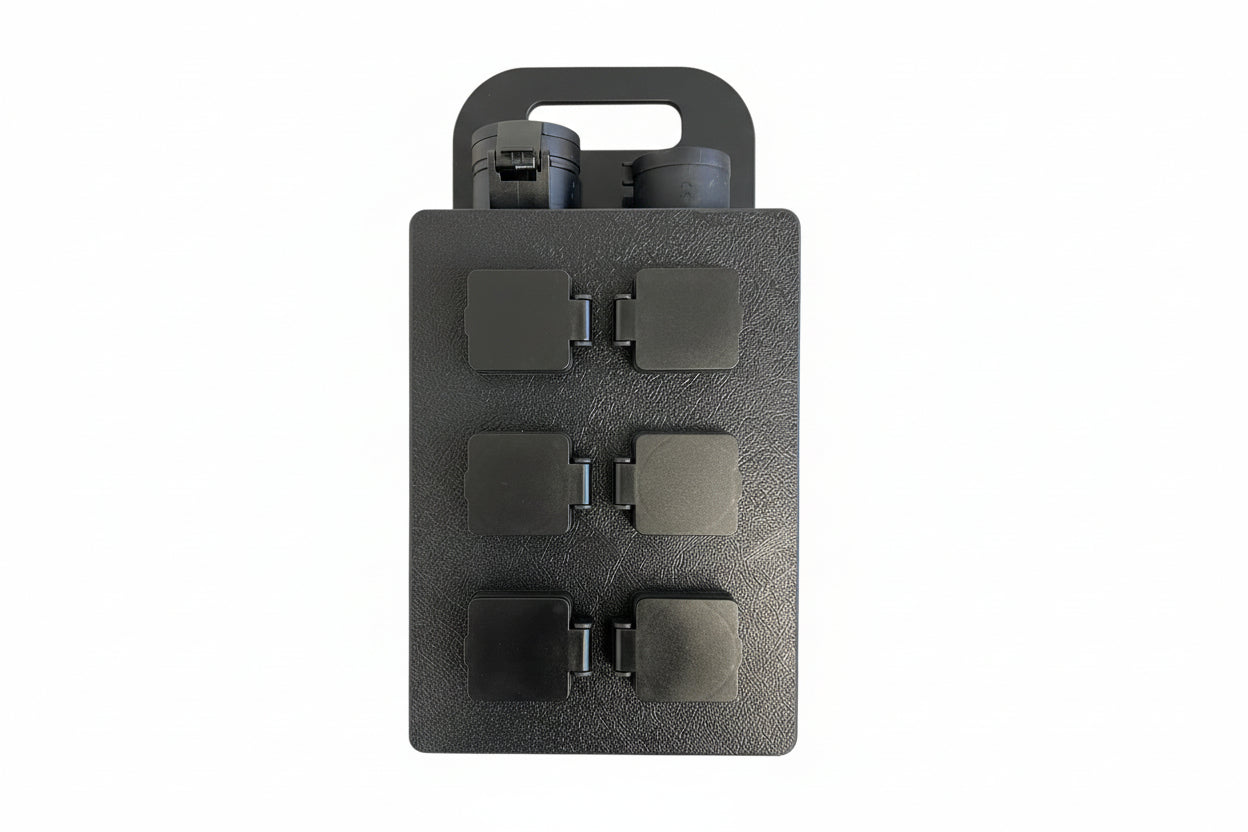

Black 32Amp Single Phase 6 x 13Amp Distribution Board (Black)

Our 32A to 6 × 13A power distribution board with black connectors is built for fast, tidy power where you need multiple low power outlets from a single 32A supply, without relying on domestic multi-plugs

It’s ideal for:

• temporary workstations (laptops, chargers, small screens)
• exhibition stands and pop‑up retail
• offices, classrooms and training rooms
• workshops and test benches
• events setups where low visibility connectors are preferred


The black 32A input and loop through output make this unit especially suited to AV and stage environments, helping keep cabling discreet and less visually intrusive.

Why there’s no RCBO in this unit

A common question is “Why doesn’t this have an RCBO built in?”

Under BS 7909 and BS 7671, 32A single‑phase supplies are typically provided with 30mA RCD protection upstream. Adding another 30mA RCD/RCBO inside this distro would place two 30mA RCD devices in series, which is generally redundant and can increase the chance of nuisance tripping.

Design and build

• Impact‑resistant polypropylene housing for hardwearing use and good chemical/corrosion resistance
• Ergonomic handle design: easy to carry, and the shape allows users to carry up to four units using two hands
• Lightweight with a compact footprint for storage and transport
• Suitable for floor mounting or suspending (application dependent)
• Green LED power indicator shows supply present at a glance

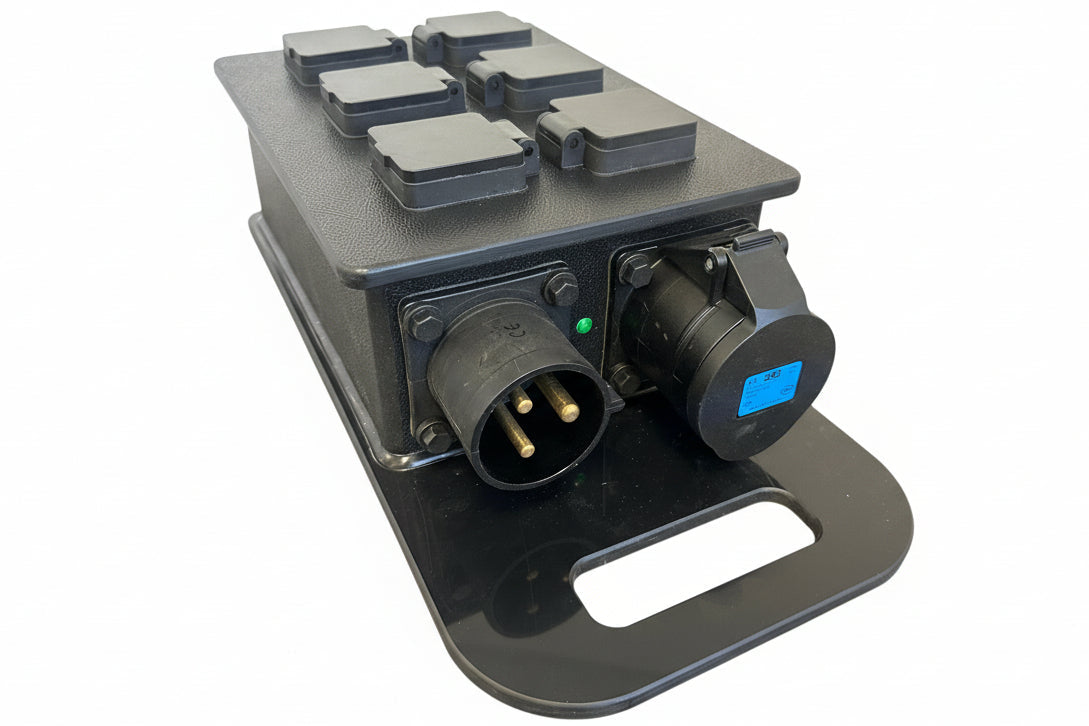

Loop through makes scaling easy

The 32A loop through outlet allows you to run multiple units from a single supply when you need more outlets across a wider area. This keeps setups tidy and avoids long runs of domestic extension leads.

IP rating note

The 13A sockets have covers that bring the outlets to IP44 when closed (not in use). Once plugs are inserted, the 13A outlets are no longer IP44.

Key specs

• Input: 32A 230V single phase (black connector)
• Loop through: 32A single phase (black connector)
• Outputs: 6 × 13A UK sockets
• Indicator: Green power LED
• Enclosure: Impact resistant polypropylene
• Ingress protection: IP44 when socket covers are closed (see note above)
• Size: 402 × 200 × 125 mm (H × W × D)
• Weight: 2.3 kg
